SG8-HP01M-C2U42HP315 - RF Signal Generator Print E-mail

RF Signal Generator 10 MHz — 8 GHz, +28 dBm

RF Signal Generator 10 MHz - 8 GHz, +28 dBm RF Signal Generator 10 MHz - 8 GHz, +28 dBm

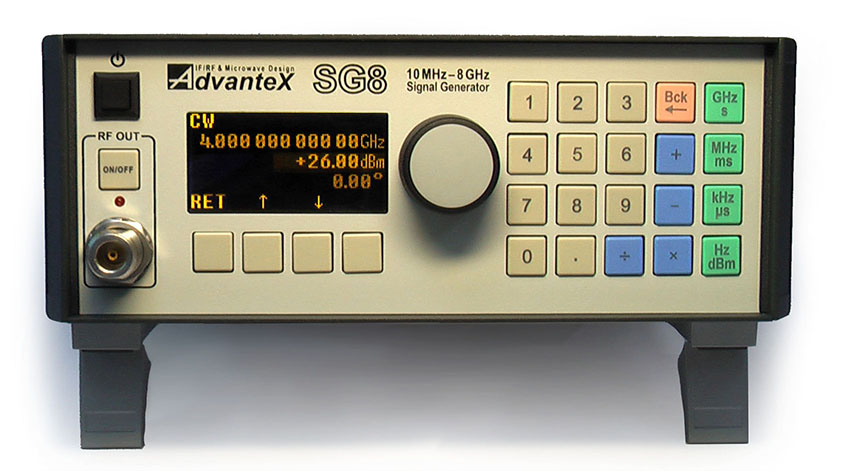

SG8 series generator is all-purpose continuous wave RF source with phase or frequency analog modulation support.  Generator has OLED display and keyboard. Control interfaces: RS-232, USB. Control protocol: SCPI.

Distinctive Features
  • High output power
  • Arbitrary reference frequency
  • Small dimensions
  • Low-cost
Key Features
  • Output frequency range: 10 MHz – 8 GHz;
  • Frequency step: < 0.001 Hz;
  • Spectral purity
    • nonharmonics: typ. < −70 dBc (Spur Suppression Option);
    • harmonics: < −30 dBc;
    • phase noise: −120 dBc/Hz @ 1GHz, 10 kHz offset;
  • Output level: up to +28 dBm;
  • Output level flatness: 0.2 dBpp;
  • Phase shift control
    • range: 360°;
    • step: < 0.022° @ Fref;
  • Reference frequency
    • range: 20 – 150 MHz (1-250 MHz step 1 MHz with Spur Suppression Option);

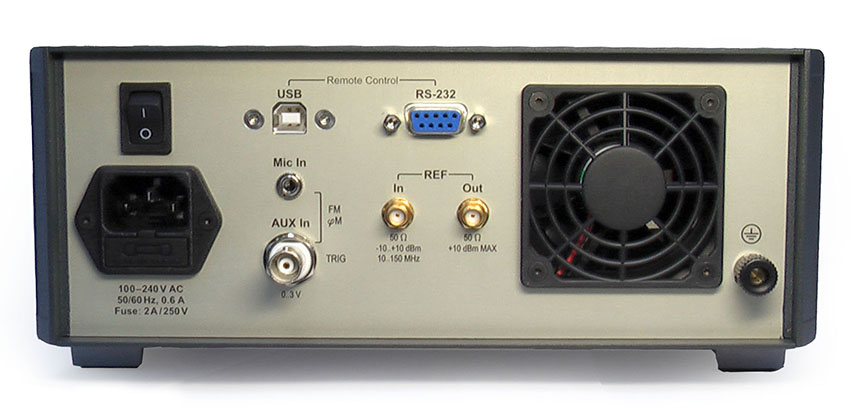

  • External interfaces: RS-232, USB;
  • Operating temperature range: 0..+40°С;
  • Dimensions: H x W x D: 2U x 42HP(½ 19'') x 315 mm.

Detailed data and additional conditions for listed values are presented in section "Datasheets".

Pricing and Availability

Instrument



Price1, (@ qty.)

Stock qty.2

Time3

1

>1

Delivery

Production

 SG8-HP01M-C2U42HP315

-

call

-

-

-

 SG8-HPSS10M-C2U42HP315 (with Spur Suppression option)

6 050 Euro


 SG8-HPSS10M-C2U42HP315 (with Spur Suppression and additional Attenuator up to -111 dB)

9 610 Euro


  1. It’s a guiding price, for more information contact us.
  2. Only this modification parts quantity is shown (some of the other modification devices may be available at the moment), for more information contact us.
  3. Delivery time — if product is available in the stock, production time — otherwise.
Product components

Item

Components

Qty.

Description

1

LNO-HP31M-RF

1

RF Synthesizer 10 MHz - 8 GHz, +28 dBm

2

PSURF-01MC111W30H60

1

Secondary power supply for RF-blocks

3

CSE-01RP-C42HP2U315

1

Case RatiopacPRO (Schroff), height 2U, width 42HP, depth 315 mm

4

S-25-12

1

Primary power supply (Meanwell) AC/DC 12V, 25W

5

SG8-KB-01M-PCB

1

Keyboard PCB

6

SG8-CTL-01M-PCB

1

Control PCB for RF-blocks, display, keyboard

7

220V AC Power Cable

1

Power cord

8

SG8 Docs

1

Specification, user documentation, warranty service coupon
Accessories

 № поз.

Компоненты

Кол-во

Описание

1

SG8 Control Application

1

Software application for SG8 control via PC COM-port. Application has an open source as it is written on Tcl/Tk and is used for easy learning of SG8 control commands for automation, and for further firmware update

Notes: accessories are not included in the product above, they should be ordered separately.

Documentation

File

Type

Description

SG8-HP01M - Datasheet

pdf

Datasheet, full specification
SG8-HP(SS)01M - Operating ManualpdfOperating Manual
SG8-HP01M-C2U42HP315 - 3D-Model

pdf

3D-model (for dimensions review) - registration required
SG8-HP(SS)01M - Calibration

pdf

SG8 RF Signal Generator - Calibration Certificate (example)
SG8-HP(SS)01M - Test Program

pdf

SG8 RF Signal Generator - Test Program
SG8-HP(SS)01M- Warranty

pdf

SG8 Warranty Example
Drivers and Firmware

File

Type

Description

CP210x_VCP_Win_XP_S2K3_Vista_7.exe

exe

Virtual COM Port Drivers for Windows XP, Server 2003, Vista, Windows 7 (CP210x USB to UART Bridge Driver)
CP210x_VCP_Win2K.exe

exe

Virtual COM Port Drivers for Windows 2K (CP210x USB to UART Bridge Driver)
cp210x-3.1.0.tar.gz

gz

Virtual COM Port Driver Kit for Linux 3.1 (CP210x USB to UART Bridge Driver)
cp210x-3.0.0.tar.gz

gz

Virtual COM Port Driver Kit for Linux 3.0 (CP210x USB to UART Bridge Driver)
Mac_OSX_VCP_Driver.zip

zip

Virtual COM Port Drivers for Mac OS (CP210x USB to UART Bridge Driver)
SG8-HP(SS)01M - Firmware

hex

SG8 RF Signal Generator - Firmware
XMI Programmer

exe

XMI Programmer - Software for SG8 firmware update (for Windows XP, Server 2003, Vista, Windows 7)

Additional documentation is available in the appropriate section for registered users. Download search system may be useful in this case.

Signal Generator 10Mhz - 8GHz, +28 dBm Signal Generator 10Mhz - 8GHz, +28 dBm Signal Generator 10Mhz - 8GHz, +28 dBm Signal Generator 10Mhz - 8GHz, +28 dBm

Applications

All-purpose RF Source

Wide frequency range covers the main frequency bands for RF applications such as radio and television, mobile, wireless networks, and radio-relay communications. This makes possible to use the generator for debugging and testing for all systems listed above. High output power compensates for additional level loss on the way to the DUT. Convenient user interface, large control elements and high-contrast display make it easy to obtain the desired signal at the RF output. Graphic display based on organic LEDs enables operation at low ambient temperatures. Small dimensions save precious rack mount space allowing to place two devices horizontally with 2U height.

Arbitrary Reference Frequency Generator

Small frequency step combined with low phase noise in low bands allows to use the generator as an arbitrary reference frequency source while testing the deviation tolerance of symbol clock rates and local oscillators of communication systems. Low phase noise at low output frequencies is possible due to frequency dividers used up to the lower bound of the frequency range instead of frequency conversion from high to low range.

One-decibel Compression Point  Measurement for High-power Output Stages

High output level enables one-decibel compression point and saturated power  measurements without additional pre-amplifiers. Usually high-power output stages have relatively small gain, so availability of high power at the generator's output sufficiently simplifies the testing process.

Second and Third Order Intercept Point  and  measurements

High spectral purity, low nonlinear distortion of output stage, and high output level compensating for additional losses in attenuators before power combiner, enable intermodulation parameters measurements of almost any RF path.

RF-path Frequency Response Measurements

Good frequency response flatness in wide frequency band due to AGC and digital correction systems allows to run scalar network analysis of DUT.

Debugging of the RF Transceiver blocks for Telecommunication and Test&Measurement Equipment

Low level of nonharmonics and phase noise makes it possible to use generator in debugging of spur-sensitive test&measurements RF paths. Exceptional spectral purity, i.e. sub-harmonics and nonharmonic spur absence, is essential while debugging and testing wideband test&measurement devices which are sensitive to spurs, for example spectrum analyzers and measurement receivers. It saves a lot of time and resources while detecting and analyzing spurs and other unwanted effects in the devices under test.

High output level also enables to use it as a local oscillator for passive balanced mixers, which usually require high power for ensuring better linearity of the path.

When debugging some systems, it is required that several LO sources in the same path are bound to some reference by natural factor. And reference frequency may significantly differ from standard series of references offered by most signal generators. In this case SG8 can use any frequency as a reference, making no demands to its stability or precision.

Test&Measurement Automation

External control interfaces (RS-232, USB) and sufficiently fast frequency settling time allow automation of the testing process in volume production, and usage of the generator in scientific laboratories where equipment is usually combined to one complex controlled by PC.
